Cone Art Model G 115
|
|
Manufacturer: Cone-Art
Part No: G115
|

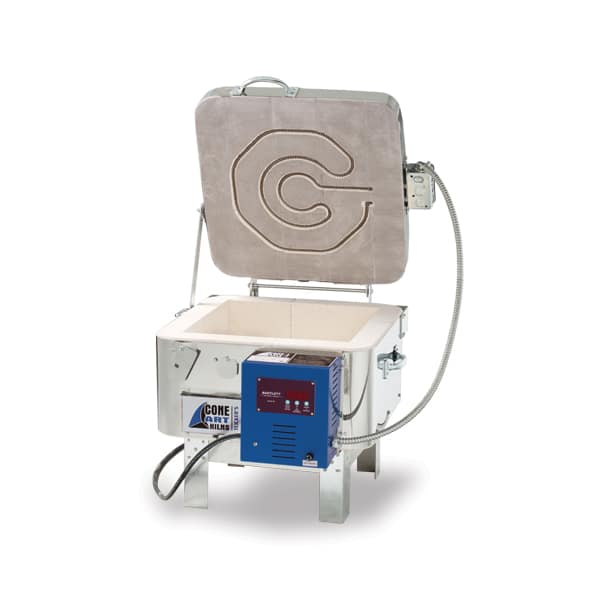

Cone Art G 115 Glass Kiln
Overview
15.5" X 15.5" X 6.5" inside dimensions
120 Volts, 18amps, 1500 watts
Premium grade firebrick
Excellent element design
Fires to 1700F
Element is protected by a quartz tube
CSA approved
UPGRADE OT THE V6CF 12-key Controller
Product Description
The model 115 is a great starter kiln for the home studio for fusing, slumping, or annealing. It draws the same power as the model 117 but gives the versatility that a square interior can provide. It has an element in the lid ensuring even heat every time.
SPECIFICATIONS
| GLASS KILNS |
| PHASE |
VOLT |
INSIDE DIMENSION |
OUTSIDE DIMENSION |
SECTIONS |
CUBIC FEET |
AMPS |
BREAKER REQUIRED |
CU WIRE GA(AWG) |
KILOWATTS |
SHIP WT LBS |
MAX TEMP |
| 1
|
120
|
15.5 X 15.5 X 6.5
|
24 X 30 X 12
|
1
|
0.90
|
18.00
|
20A
|
14
|
2.20
|
130.00
|
1700
|
|
|
|
|
|
